Parallel PPO with discrete actions

Like in the Distributed-SAC notebook, the agents perceive the other agent’s relative position and speed.

Instead of continous accelerations, we train a policy to compute discrete accelerations using parallel PPO, as SAC from StableBaseline only support continuous actions.

from navground import core, sim
from navground.learning import DefaultObservationConfig
from navground.learning.config import DiscreteControlActionConfig
from navground.learning.parallel_env import make_vec_from_penv
from navground.learning.examples.pad import get_env, marker, neighbor
from stable_baselines3.common.vec_env import VecMonitor

name = "DistributedDiscrete"
action = DiscreteControlActionConfig(use_acceleration_action=True, max_acceleration=1, fix_orientation=True)
observation = DefaultObservationConfig(flat=False, include_velocity=True, include_target_direction=False)
sensors = [marker(), neighbor()]
train_env = get_env(action=action, observation=observation,
                    sensors=sensors, start_in_opposite_sides=True)
train_venv = VecMonitor(make_vec_from_penv(train_env, num_envs=4))

test_env = get_env(action=action, observation=observation,
                   sensors=sensors, start_in_opposite_sides=True)
test_venv = VecMonitor(make_vec_from_penv(test_env, num_envs=4))

We removed the neighbor position from the observation:

train_venv.observation_space

Dict('neighbor/position': Box(-10.0, 10.0, (1, 1), float32), 'neighbor/velocity': Box(-0.166, 0.166, (1, 1), float32), 'pad/x': Box(-1.0, 1.0, (1,), float32), 'ego_velocity': Box(-0.14, 0.14, (1,), float32))

train_venv.action_space

Discrete(3)

Training

You can skip training and instead load the last trained policy by changing the flag below.

from navground.learning.utils.jupyter import skip_if, run_if

training = True

%%skip_if $training

import pathlib, os
from stable_baselines3 import PPO

log = max(pathlib.Path(f'logs/{name}/SAC').glob('*'), key=os.path.getmtime)

%%run_if $training

from datetime import datetime as dt
from stable_baselines3 import PPO
from stable_baselines3.common.logger import configure
from navground.learning.utils.sb3 import callbacks
from navground.learning.scenarios.pad import render_kwargs

model = PPO("MultiInputPolicy", train_venv, verbose=0, n_steps=1024)
stamp = dt.now().strftime("%Y%m%d_%H%M%S")
log = f"logs/{name}/SAC/{stamp}"
model.set_logger(configure(log, ["csv", "tensorboard"]))
cbs = callbacks(venv=test_venv, best_model_save_path=log,
                eval_freq=1024 * 4, export_to_onnx=True,
                **render_kwargs())
log

'logs/DistributedDiscrete/SAC/20250521_131506'

%%run_if $training

model.learn(total_timesteps=1_000_000, reset_num_timesteps=False,
            log_interval=10, callback=cbs)
model.num_timesteps

1007616

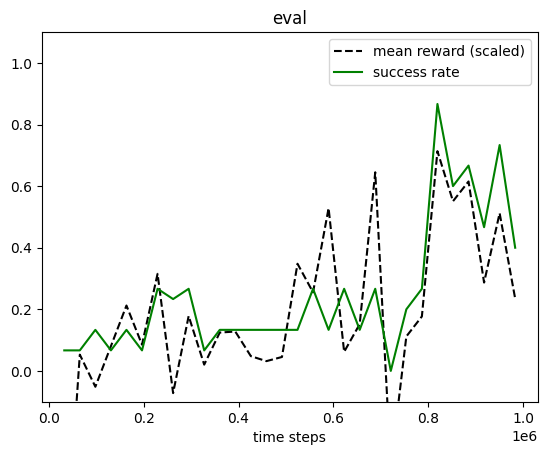

from navground.learning.utils.sb3 import plot_eval_logs

plot_eval_logs(log, reward_low=-200, reward_high=0, success=True)

Evaluation

from stable_baselines3.common.evaluation import evaluate_policy

best_model = PPO.load(f'{log}/best_model')
evaluate_policy(best_model.policy, test_venv, n_eval_episodes=30)

(-54.59525, 114.69993)

from navground.learning.evaluation.video import display_episode_video

display_episode_video(test_env, policy=best_model.policy, factor=4, seed=1, **render_kwargs())

from navground.learning.evaluation.video import record_episode_video

record_episode_video(test_env, policy=best_model.policy,
                     path=f'../videos/{name}.mp4', seed=1, **render_kwargs())

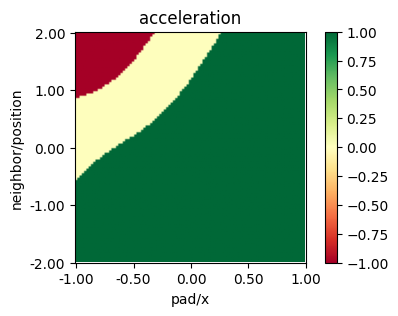

from navground.learning.utils.plot import plot_policy

plot_policy(best_model.policy,
            variable={'pad/x': (-1, 1), 'neighbor/position': (-2, 2)},
            fix={'ego_velocity': 0.1, 'neighbor/velocity': 0.1},
            actions={0: 'acceleration'}, width=5, height=3)
