Continuous actions with MLP#
[1]:
%load_ext autoreload
%autoreload 2
[2]:
import warnings
warnings.filterwarnings('ignore')
You can skip training and instead load the last trained policy by changing the flag below.
[3]:
from navground.learning.utils.jupyter import skip_if, run_if
training = True
MASAC#
[4]:
from navground.learning import DefaultObservationConfig, DefaultStateConfig
from navground.learning.config.control_action_with_comm import ControlActionWithCommConfig
from navground.learning.examples.pad import get_env, comm, marker, PadReward
from navground.learning.scenarios.pad import render_kwargs
name = "DistributedCommFloatWithRewardSharing"
comm_size = 1
kwargs = render_kwargs(comm=True, low=-1, high=1,
color_low=(1, 0, 0), color_high=(0, 1, 0))
action = ControlActionWithCommConfig(use_acceleration_action=True, max_acceleration=1,
fix_orientation=True, comm_size=comm_size)
observation = DefaultObservationConfig(flat=False, include_velocity=True, include_target_direction=False)
state = DefaultStateConfig(include_y=False, include_position=True, include_velocity=True)
sensors = [comm(size=comm_size, binarize=False), marker()]
train_env = get_env(action=action, observation=observation, state=state,
sensors=sensors, start_in_opposite_sides=False,
reward=PadReward(neighbor_weight=0.5), include_success=False)
test_env = get_env(action=action, observation=observation, sensors=sensors, state=state,
start_in_opposite_sides=True,
include_success=True, init_success=False, intermediate_success=True,
render_mode='rgb_array', render_kwargs=kwargs)
[5]:
%%skip_if $training
import pathlib, os
from navground.learning.utils.benchmarl import NavgroundExperiment
path = max(pathlib.Path(f'logs/{name}/MASAC').glob('*/checkpoints/*.pt'), key=os.path.getmtime)
experiment = NavgroundExperiment.reload_from_file(str(path))
experiment.folder_name
[6]:
%%run_if $training
import os
from benchmarl.algorithms import MasacConfig
from benchmarl.models.mlp import MlpConfig
from benchmarl.experiment import ExperimentConfig
from navground.learning.utils.benchmarl import NavgroundExperiment, ExportPolicyCallback
algorithm = MasacConfig.get_from_yaml()
model = MlpConfig.get_from_yaml()
config = ExperimentConfig.get_from_yaml()
config.loggers = [ 'csv']
config.render = True
config.evaluation_interval = 6000
config.evaluation_episodes = 30
config.lr = 3e-4
config.max_n_iters = 1
config.checkpoint_at_end = True
config.save_folder = f'logs/{name}/MASAC'
os.makedirs(config.save_folder, exist_ok=True)
experiment_masac = NavgroundExperiment(
env=train_env,
eval_env=test_env,
config=config,
model_config=model,
algorithm_config=algorithm,
seed=0,
callbacks=[ExportPolicyCallback()]
)
experiment_masac.folder_name
[6]:
PosixPath('logs/DistributedCommFloatWithRewardSharing/MASAC/masac_navground_mlp__1e615e81_25_05_21-15_59_07')
[7]:
%%run_if $training
experiment_masac.run_for(iterations=20)
mean return = -50.01181411743164: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [07:26<00:00, 22.34s/it]
We can evalute the policy directly using
[8]:

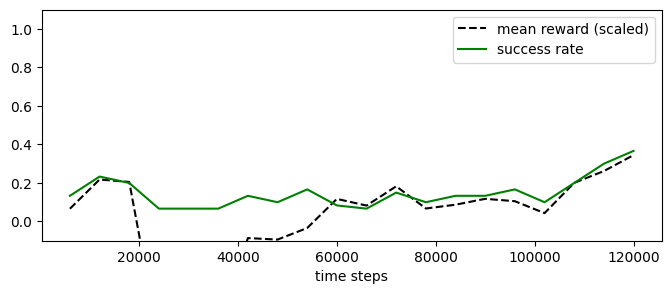

experiment_masac.plot_eval_logs(reward_low=-200, reward_high=0,
success=True, figsize=(8, 3))

[10]:
from stable_baselines3.common.evaluation import evaluate_policy
from navground.learning.parallel_env import make_vec_from_penv
test_venv = make_vec_from_penv(test_env)
policy_masac = experiment_masac.load_policy(name='best_policy')
evaluate_policy(policy_masac, test_venv, n_eval_episodes=30)
[10]:
(-163.7968806942304, 78.07210597448923)
[11]:
from navground.learning.evaluation.video import display_episode_video
display_episode_video(test_env, policy=policy_masac, factor=4, select=2, of=31, **kwargs)
[11]:
[14]:

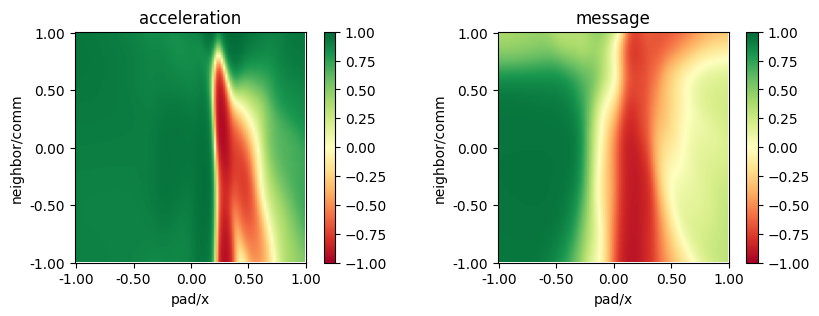

from navground.learning.utils.plot import plot_policy
plot_policy(policy_masac,
variable={'pad/x': (-1, 1), 'neighbor/comm': (-1, 1)},
fix={'ego_velocity': 0.1},
actions={0: 'acceleration', 1: 'message'},
width=5, height=3)

MAPPO#
[16]:
train_env_mappo = get_env(action=action, observation=observation, state=state,
sensors=sensors, start_in_opposite_sides=True,
reward=PadReward(neighbor_weight=0.5), include_success=False)
[17]:
%%skip_if $training
path = max(pathlib.Path(f'logs/{name}/MAPPO').glob('*/checkpoints/*.pt'), key=os.path.getmtime)
experiment = NavgroundExperiment.reload_from_file(str(path))
experiment.folder_name
[19]:
%%run_if $training
from benchmarl.algorithms import MappoConfig
algorithm = MappoConfig.get_from_yaml()
model = MlpConfig.get_from_yaml()
config = ExperimentConfig.get_from_yaml()
config.loggers = [ 'csv']
config.render = True
config.evaluation_interval = 6000
config.evaluation_episodes = 30
config.lr = 3e-4
config.max_n_iters = 1
config.checkpoint_at_end = True
config.save_folder = f'logs/{name}/MAPPO'
config.max_n_iters = 1
os.makedirs(config.save_folder, exist_ok=True)
experiment_mappo = NavgroundExperiment(
env=train_env_mappo,
eval_env=test_env,
config=config,
model_config=model,
algorithm_config=algorithm,
seed=0,
callbacks=[ExportPolicyCallback()]
)
experiment_mappo.folder_name
[19]:
PosixPath('logs/DistributedCommFloatWithRewardSharing/MAPPO/mappo_navground_mlp__21107964_25_05_21-16_09_02')
[20]:
%%run_if $training
experiment_mappo.run_for(iterations=20)
mean return = -104.82219696044922: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [07:14<00:00, 21.74s/it]
[21]:

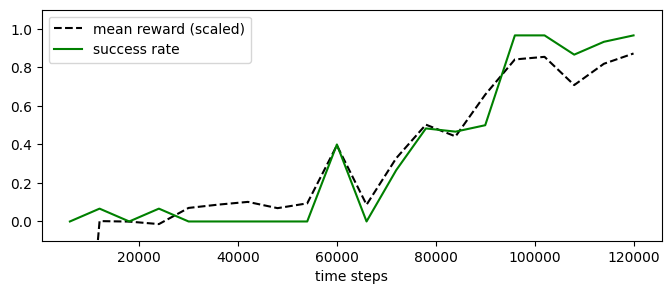

experiment_mappo.plot_eval_logs(reward_low=-200, reward_high=0,
success=True, figsize=(8, 3))

[22]:
policy_mappo = experiment_mappo.load_policy(name='best_policy')
evaluate_policy(policy_mappo, test_venv, n_eval_episodes=30)
[22]:
(-14.98083089987437, 16.28543382920021)
[23]:
display_episode_video(test_env, policy=policy_mappo, factor=4, select=2, of=31, **kwargs)
[23]:
[24]:

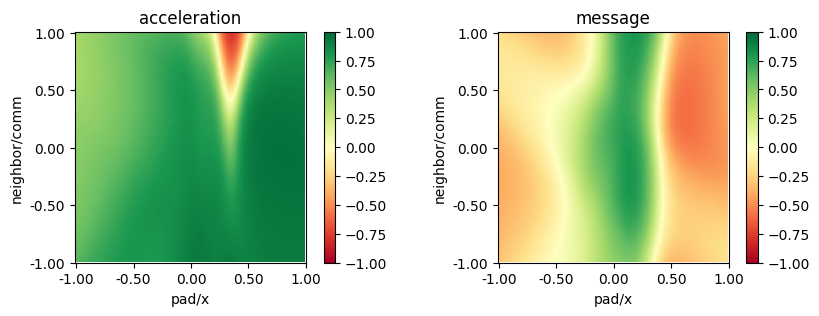

plot_policy(policy_mappo,
variable={'pad/x': (-1, 1), 'neighbor/comm': (-1, 1)},
fix={'ego_velocity': 0.1},
actions={0: 'acceleration', 1: 'message'},
width=5, height=3)

[ ]:
